Your computer suddenly refuses to power on. This can be very frustrating. You might suspect a dead motherboard symptoms. Diagnosing hardware problems can feel daunting.
Many people think special tools are always needed.
This guide shows how to test without a multimeter. You can often pinpoint issues yourself. Let us explore common problems.
We will cover various troubleshooting steps.
Is Your Motherboard Truly Dead?
A motherboard is the computer’s central nervous system. It connects all crucial components together. If it fails, nothing else will work.
A “dead” board means no power or processing. It might not even show any signs of life. Other components can mimic these failures.
It is important to rule out other parts first. Do not jump to conclusions too quickly. This guide will help you confirm.
Common Dead Motherboard Symptoms
Recognizing the signs is your first step. Several issues point to a faulty motherboard.
No Power At All: The computer is completely unresponsive. No lights illuminate anywhere. Fans do not spin up at all. This is a very strong indicator.
Fans Spin, But No Display: Your computer seems to power on. Case fans and CPU fans spin. However, nothing appears on your monitor. This is a common and confusing symptom.
Beep Codes or Error Lights: Many motherboards use diagnostic beeps. These audible patterns signal specific errors. Some modern boards have LED diagnostic lights. These lights indicate the failing component.
Random Shutdowns or Restarts: Your computer unexpectedly turns off. It might restart without warning. This could be a power delivery issue. Often, the motherboard is the culprit.
Burning Smell or Visible Damage: A distinct burning smell is a bad sign. Visually inspect the board closely. Look for scorched components or bulging capacitors. This is a clear indicator of failure.
Peripherals Not Working: USB ports or other ports fail. This might suggest a localized board problem. Integrated audio or network might also fail.
Failure to POST (Power-On Self-Test): The computer turns on but freezes. It stops before loading the operating system. This indicates a fundamental hardware issue. The motherboard is often involved here.
System Instability and Crashes: Frequent blue screens of death (BSODs) occur. Applications crash often and unexpectedly. This could be memory or driver-related. A failing motherboard is also a possibility.
CPU Not Detected: The system powers on but reports no CPU. This is a critical error message. Sometimes, it is the CPU itself. Other times, the motherboard socket is faulty.
BIOS/UEFI Issues: You cannot access the BIOS settings. Settings might not save correctly. This points to a problem with the BIOS chip. The motherboard is the direct cause.
Overheating Without Load: Components get excessively hot quickly. This happens even without heavy tasks. Poor power regulation could be the reason. The motherboard’s VRMs might be failing.
Initial Checks
Before diagnosing the motherboard, check simpler things. These steps require no special tools.
Check the Power Outlet: Ensure the wall outlet works correctly. Plug in another device to test it. A faulty outlet is an easy fix.
Inspect Power Cables: Verify all power cables are seated firmly. This includes the main 24-pin ATX connector. Also, check the 4/8-pin CPU power cable. Loose connections are surprisingly common.
Test the Power Supply Unit (PSU): The PSU delivers power to the motherboard. A bad PSU can mimic a dead motherboard. We will discuss the “paperclip test” soon.
Remove Non-Essential Peripherals: Disconnect all external devices. Unplug USB drives, printers, and speakers. Sometimes a faulty peripheral causes issues.
Reseat RAM Modules: Take out your RAM sticks. Reinsert them firmly into their slots. Dust can sometimes interfere with contacts.
Reseat Graphics Card: If you have a dedicated GPU, reseat it. Ensure it is fully seated in the PCIe slot. Also, check its power cables.
Clear CMOS (Complementary Metal-Oxide-Semiconductor): This resets BIOS settings to default. Turn off the computer completely. Remove the small circular CMOS battery. Wait about 30 seconds, then reinsert it. Alternatively, use the CMOS clear jumper. Consult your motherboard manual for its location.
Check Front Panel Connections: The power button connects here. Ensure the power switch header is correctly installed. A loose wire can prevent power-on.
Verify Monitor Connection: Make sure the monitor is plugged in. Check its power and video cables. Ensure the monitor is turned on.
Try a Different Monitor/Cable: Your display issue might not be the PC. Test with a known working monitor. Use a different video cable, too.

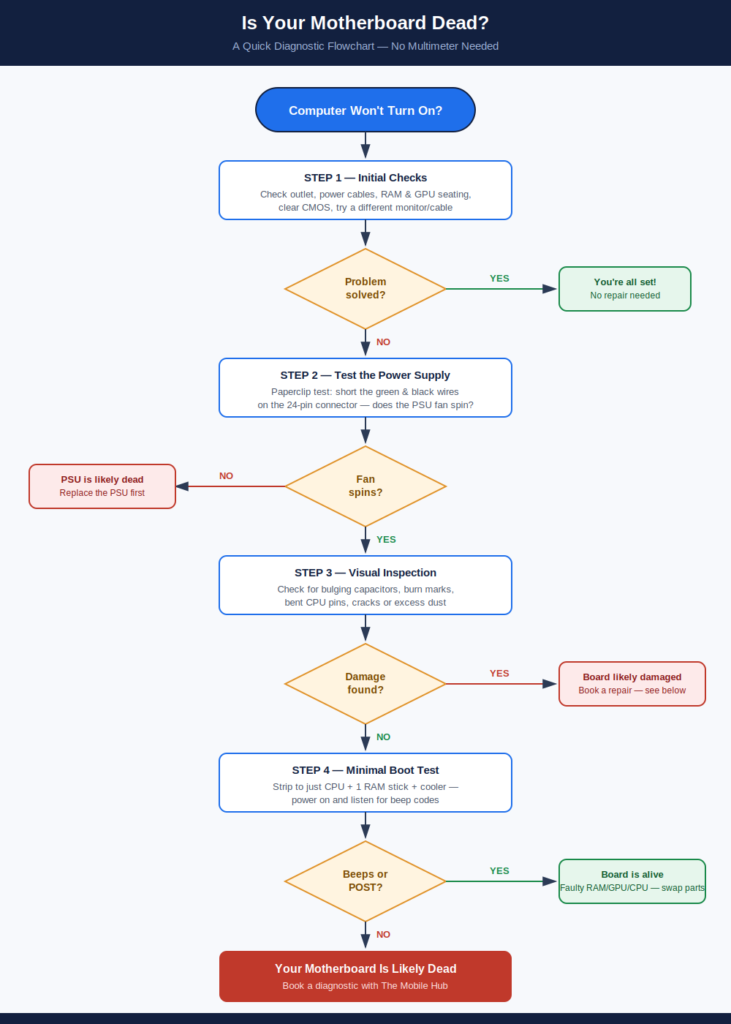

How to Test Motherboard Without Multimeter
Now, let us get to the core methods. These techniques help diagnose the board.
1. Visual Inspection for Damage
This is the simplest yet most effective method.
Look for Bulging Capacitors: Capacitors are small, cylindrical components. They store and release electrical energy. Over time, they can swell or leak. This is a very common failure point. Swollen tops or brown residue are bad signs.
Check for Burn Marks: Inspect the entire motherboard surface. Look for any discolored areas. Scorched spots indicate overheating or short circuits. Pay attention to power connectors.
Examine Bent Pins: Carefully check the CPU socket pins. Bent or missing pins cause major issues. This is especially true for Intel CPUs. AMD CPUs have pins on the chip itself.
Look for Scratches or Cracks: Physical damage can occur during installation. Even small cracks can disrupt circuits. Inspect both sides of the board.
Dust and Debris: Excessive dust can cause overheating. It can also lead to short circuits. Clean the board with compressed air. Ensure no foreign objects are present.
2. The Paperclip Test for PSU
This test checks if your power supply works.
Disconnect PSU from Motherboard: Unplug the large 24-pin ATX cable. Also, unplug the 4/8-pin CPU power cable.
Get a Paperclip: Straighten a paperclip into a U-shape.
Short the Green and Black Wires: Locate the green wire on the 24-pin connector. Insert one end of the paperclip into its pin. Insert the other end into any black wire pin.
Connect Power: Plug the PSU into a wall outlet.
Observe PSU Fan: The PSU fan should start spinning immediately. If it spins, the PSU is likely working. If not, the PSU is probably dead. A faulty PSU is a common cause. This test helps rule it out.
3. Minimal Boot Test
This method isolates components.
Remove All Non-Essentials: Disconnect everything from the motherboard. This includes the GPU, all storage drives, and expansion cards. Leave only the CPU, one stick of RAM, and the CPU cooler.
Connect PSU and Power Button: Plug in the 24-pin ATX and CPU power cables. Connect the power button header.
Power On: Try to power on the system.
Listen for Beep Codes: If the motherboard beeps, it is alive. The beeps will indicate missing components. For example, “no RAM” or “no GPU.” This confirms the board is working. If there are no beeps, the board might be dead.
4. Component Swapping (If Available)
This requires spare parts.
Swap RAM: Try a different stick of RAM. Test each RAM slot individually. Faulty RAM can prevent booting.
Swap CPU: If you have a compatible spare CPU, try it. A dead CPU can mimic a dead motherboard. This is less common but possible.
Swap GPU: If you have a discrete graphics card, swap it. Use a different PCIe slot if possible. Onboard graphics can also be tested.
Swap PSU: If you have another power supply, try it. This is the most definitive PSU test.
5. Listening for Beep Codes
Motherboards use beeps to signal errors.
Connect a Speaker: Ensure a small speaker is connected. It plugs into the motherboard’s speaker header.
Power On: Listen carefully after pressing the power button.
Interpret Beeps: Different beep patterns mean different things. For example, one long and two short beeps often mean a video error. Consult your motherboard manual.
It lists all beep codes. No beeps at all often means a dead board.
6. Checking for POST Codes (If Applicable)
Some motherboards have a POST code display.
Locate the Display: Look for a small two-digit LED display. It is usually near the bottom edge.
Power On: Observe the codes displayed during boot.
Consult Manual: Each code corresponds to a specific boot stage. The manual explains what each code means. A code that stops indicates a failure point. If it shows nothing, the board is likely dead.
7. The “Touch Test” (Use Caution)
This involves feeling for heat.
Power On Briefly: Turn on the computer for a few seconds.
Carefully Touch Components: Gently touch the CPU heatsink. Feel the chipset heatsink. Touch the VRM area (near the CPU socket).
Observe Heat: Components should get slightly warm. If a component is instantly scalding hot, it is shorting. If nothing gets warm, no power is flowing. Be extremely careful doing this. Avoid touching bare circuits.
8. Power Button/Front Panel Header Test
This bypasses a potentially faulty power button.
Locate Power Switch Pins: Find the “PWR SW” pins on the front panel header. Consult your motherboard manual for the exact location.
Short the Pins: Use a small screwdriver or metal object. Briefly touch both PWR SW pins simultaneously.
Observe Power: If the computer powers on, your power button is faulty. The motherboard itself is likely fine.
Specific Scenarios: Motherboard Not Powering On
This is one of the most common and frustrating issues.
PSU is the Primary Suspect: As discussed, a dead PSU often causes this. Perform the paperclip test first.
Front Panel Header Issues: A disconnected or incorrectly wired power button header. Double-check all these small wires.
Short Circuit: Something might be shorting the motherboard. Check for loose screws under the board. Ensure standoffs are correctly installed. Remove the board from the case. Test it on a non-conductive surface. This eliminates case shorts.
Faulty Power Button: The physical power button itself might be broken. The shorting pins test will confirm this.
Dead Motherboard: If all else fails, and the PSU works, the motherboard is likely dead. No power is reaching the components. No diagnostic lights or beeps.
Recognizing Signs of Faulty Motherboard
Let us recap the key indicators.
- No power or signs of life.
- Fans spin, but no display.
- Consistent error beeps or codes.
- Random shutdowns or reboots.
- Visible damage, like bulging capacitors.
- Burning smell from inside the case.
- Failure to complete the POST.
- Peripherals are not functioning correctly.
- System instability and frequent crashes.
These are strong indicators. They suggest the motherboard is failing.
When to Seek Professional Help or Replace
If you have tried all these steps and the problem persists, consider professional help. A technician can use specialized equipment. They can diagnose complex issues. If the motherboard is confirmed dead, replacement is necessary.
Choosing a new motherboard can be exciting. Ensure compatibility with your existing components. Research reviews and features carefully.
Conclusion
Diagnosing a dead motherboard can be challenging. However, it is certainly achievable without a multimeter. By systematically checking components and connections, you can often pinpoint the problem. Remember to start with the simplest checks first. Always prioritize safety during troubleshooting. Hopefully, these tips will help you get your computer running again.
